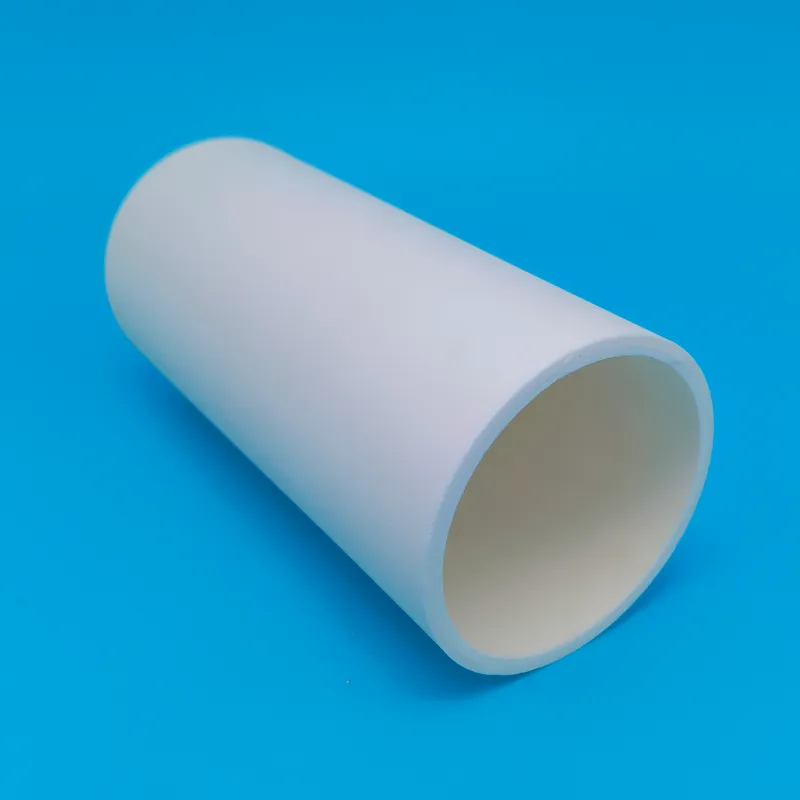

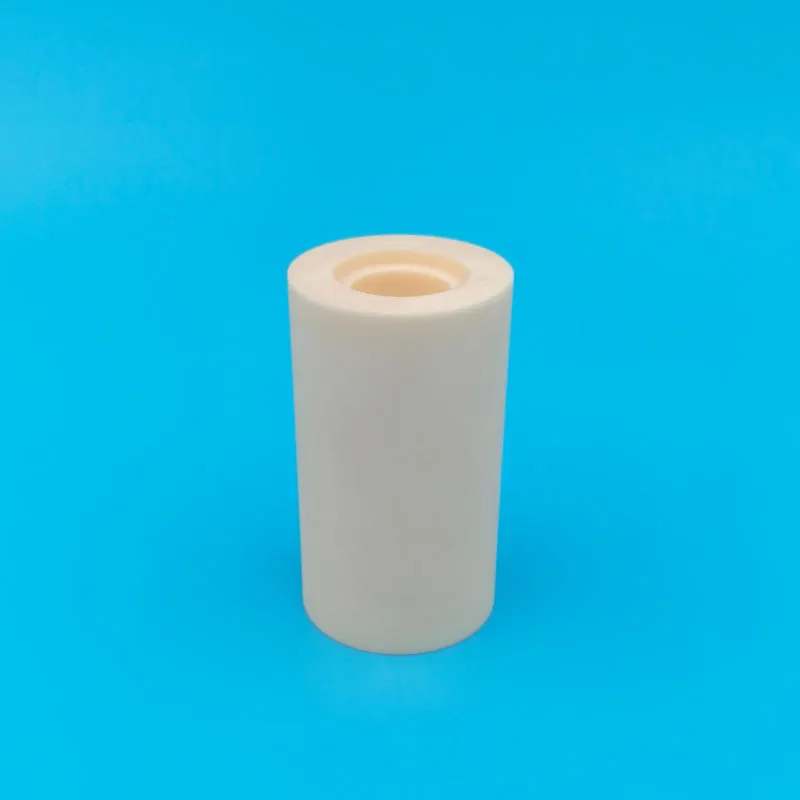

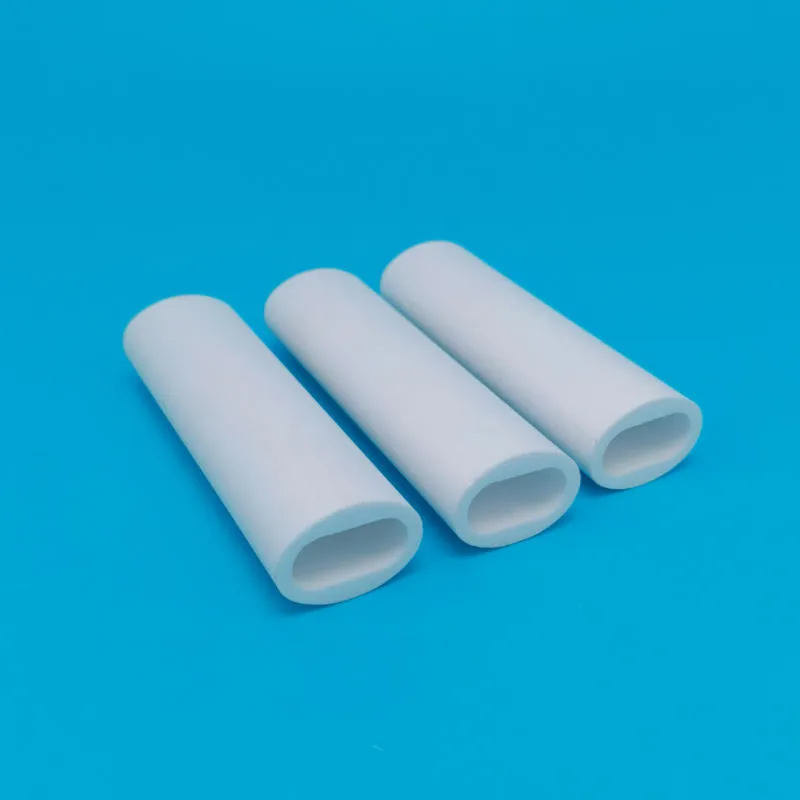

High-temperature resistant alumina ceramic tubes high-purity alumina insulation tubes

Alumina ceramic tubes, with their exceptional high-temperature resistance and excellent electrical insulation properties, are crucial and often an irreplaceable solution for these applications.

Alumina ceramic tubes, with their high-temperature resistance, corrosion resistance, high hardness, and excellent electrical insulation properties, are widely used in semiconductor manufacturing, chemical energy, power metallurgy, medical equipment, and electronic packaging.

Different alumina purities are recommended for different applications.

Applications	Utilize core performance	Recommended alumina purity
High temperature furnace tubes, thermocouple sleeves	High temperature resistance, thermal stability, chemical inertness	99% - 99.9%
Wear-resistant lined pipes and nozzles	High hardness, extremely wear-resistant, smooth interior	95% - 99%
Semiconductor diffusion furnace tube	Ultra-high purity, high-temperature insulation, low volatility	99.5% - 99.9%
High voltage insulating porcelain bushing	High dielectric strength, high mechanical strength	95% - 99%
Chemical corrosion-resistant parts	Chemically inert, high density	99% - 99.9%

As high-performance industrial components, alumina ceramic tubes are valued for a range of exceptional material properties, making them an irreplaceable choice for specific demanding operating conditions.

The following is a detailed explanation of the core performance advantages of alumina ceramic tubes:

Advantage Category	Specific Performance	Application Value
1. Excellent High-Temperature Resistance	Able to operate for extended periods in high-temperature environments of 1600°C-1800°C, with a melting point as high as 2050°C.	Suitable for high-temperature furnace tubes, thermocouple protection tubes, and molten metal processing, its performance far exceeds that of most metals and polymers.
2. Excellent Hardness and Wear Resistance	With a Rockwell hardness of up to HRA 80-90, its wear resistance is 266 times that of manganese steel.	When used as wear-resistant lined pipes for conveying abrasive materials such as slurry, coal powder, and ash, it offers an extremely long service life, significantly reducing replacement frequency and maintenance costs.
3. Excellent electrical insulation	Its volume resistivity is >10¹⁴ Ω·cm at room temperature and maintains excellent insulation properties even at high temperatures. It also boasts a high dielectric strength (15-18 kV/mm).	It is an ideal high-temperature insulation material for applications such as high-voltage electrical insulation bushings, semiconductor diffusion furnace tubes, and vacuum feedthroughs, ensuring electrical safety.
4. Excellent corrosion resistance	It is highly resistant to most acids, alkalis, solvents, and molten metals, resisting oxidation and rust.	It can be used in corrosive environments such as chemical piping, aluminum molten thermowells, and the glass industry, extending the life of equipment.
5. High mechanical strength	It boasts extremely high compressive strength (>2000 MPa) and good flexural strength (300-450 MPa).	It can withstand high loads and maintain its shape as a structural component, such as in high-temperature furnaces.
6. Excellent chemical stability	Its pure material (especially high-purity 99% porcelain) is not easily reactive with other substances and exhibits low outgassing.	In semiconductor, vacuum, and high-purity material processing, it does not contaminate the process environment or the product.
7. High Cost-Effectiveness	Although the unit price may be higher than that of ordinary steel pipe, its extremely long service life and maintenance-free nature significantly reduce the overall cost of use.	Over its entire lifecycle, its comprehensive economic benefits in the areas of wear resistance and high temperature resistance are outstanding.

Application and Performance Correlation of Alumina Ceramic Tubes

Performance Advantages	Directly Corresponding Typical Application Scenarios
High-Temperature Resistance + Chemical Stability	High temperature furnace tubes (atmosphere furnace, vacuum furnace), thermocouple protection sleeves, glass melting furnace observation tubes
Wear + corrosion resistant	Wear-resistant lined pipes (for conveying slurry and coal powder), casing for chemical pumps, and sandblasting equipment components
Electrical insulation + high temperature resistance	Semiconductor diffusion furnace tubes, high-voltage insulating porcelain sleeves, vacuum circuit breaker housings
High hardness + chemical inertness	Mechanical guide rollers, bushings, laboratory utensils (crucibles, combustion tubes)

The core advantage of alumina ceramic tubes lies in their unique combination of superior properties: they are both indestructible (hard and wear-resistant), fire-resistant (high temperature), and impervious to all poisons (corrosion-resistant), while also functioning as a reliable insulation guard.

It is this balanced combination of properties that makes them the ultimate material solution for solving extreme working conditions in numerous industrial fields, including high-temperature heat treatment, wear-resistant transportation, power insulation, semiconductor manufacturing, and chemical corrosion protection. When selecting a tube, be sure to weigh its advantages and limitations to ensure its properties are perfectly matched to your application requirements.
